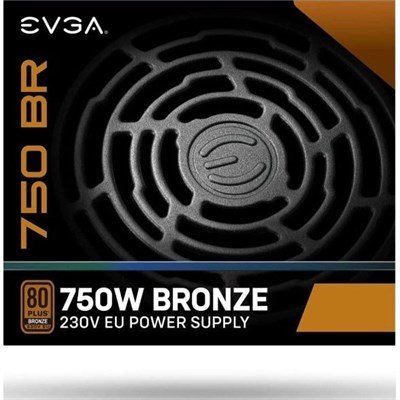

EVGA 750 BR 750W Non-Modular Black Desktop Power Supply, 80 Plus Bronze, 100-BR-0750-K3

Description

SPECIFICATIONS

Brand

EVGA

Series

750 BR

Model

100-BR-0750-K3

Maximum Power

80 Plus Efficiency

Bronze

85% Typical

Colour

Black

Fan

135mm

Fluid Dynamic Bearing

Modular Design

Non-Modular Design

Connectors

ATX

1x 24pin(20+4)

EPS (CPU)

1x 8pin (4+4)

PCI-E

4x 8pin (6+2)

SATA

9x

Four-Pin Peripheral

3x

Floppy

1x

Cable Length

ATX Cable

1x 550mm

EPS Cable

1x 600mm

PCIE Cable

2x 550mm, 670mm

SATA Cable

3x 450mm, 570mm, 690mm

Four-Pin Peripheral Cable

1x 450mm, 570mm, 690mm, 810mm (Floppy)

Floppy Adapter

1x

AC Power

1x 1200mm

Input

Input Voltage

200 – 240V

AC Input

5A

Input Frequency Range

60/50Hz

Output

Rail

+3.3V, +5V, +12V, -12V, +5Vsb

Max Output

20A, 20A, 62.5A, 0.3A, 3A

General

ECO Mode

No

MTBF

100,000 Hours

Safety Certification

TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS

Compliance with ErP Lot 3 2014 Requirement

Dimensions

86 x 150 x 140 mm

Weight

2.54 kg

1.85 kg
